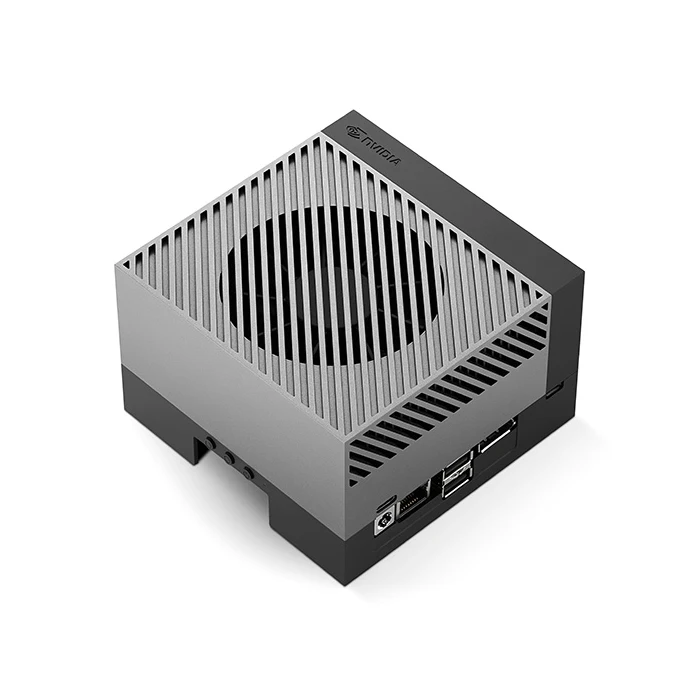

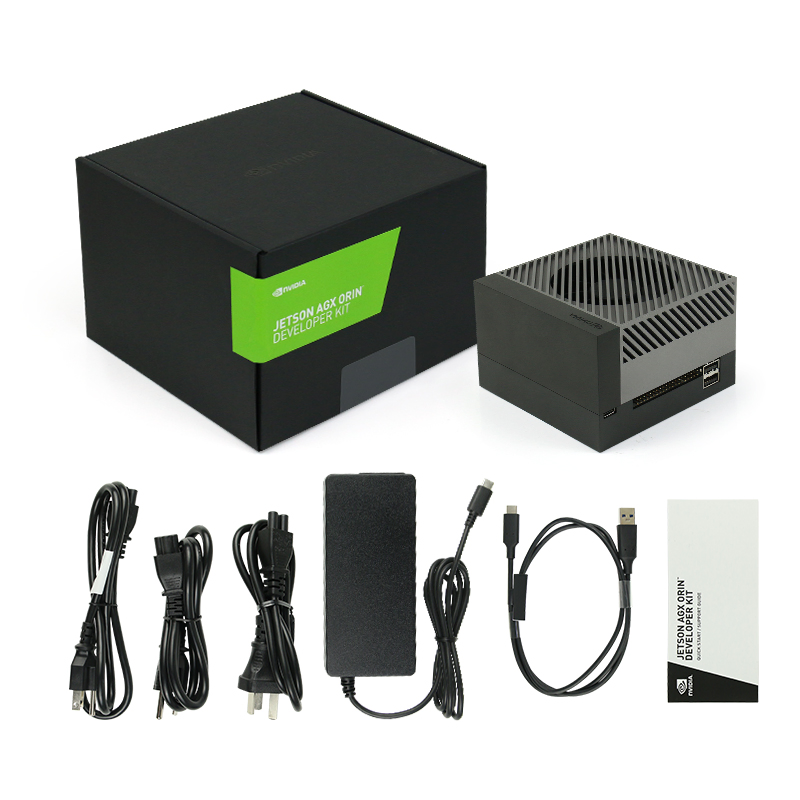

NVIDIA MINI PC JETSON AGX ORIN 64GB DK

Deskripsi Produk:

NVIDIA Jetson AGX Orin Developer Kit merupakan hardware akselerator Aritificial Intelligence (AI) yang dapat digunakan untuk menjalankan proses atau model-model AI.
Jetson AGX Orin memiliki kemampuan komputasi yang powerfull lebih dari 8x kemampuan komputasi yang dimiliki oleh NVIDIA Jetson AGX Xavier. Jetson AGX Orin memiliki performa AI sampai 275 TOPS sehingga sangat baik digunakan untuk menjalankan framework-framework untuk AI seperti TensorFlow dan framework AI lainnya.
NVIDIA Jetson AGX Orin sudah mendukung JetPack 5.0, Jetson software paling terupdate sekarang ini. Jetpack 5.0 sudah include L4T, Docker, CUDA 11.x, cuDNN, dan Tensor RT.
Dengan kemampuan komputasi yang powerfull dan ditambah menggunakan Jetson software yang mendukung eco system AI dari NVIDIA membuat Jetson AGX Orin sangat bagus sekali digunakan untuk proyek-proyek robotika, mobil listrik, mesin-mesin pintar yang memanfaatkan AI didalamnya.
Spesifikasi AGX Orin Module :
Power : 15 ~ 60W
Performa AI : 275 TOPS (INT8)
GPU : 2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores
Frekuensi GPU : 1.3GHzs (Maks)
CPU : 12-core Arm Cortex-A78AE v8.2 64-bit CPU, 3MB L2 + 6MB L3
Frekuensi CPU : 2.2GHz (Maks)
DL Accelerator : 2x NVDLA v2.0
Vision Accelerator : 1x PVA v2.0
Memori : 64GB 256bit LPDDR5 204.8GB/s
Storage : 64GB eMMC 5.1
CSI Camera : 16-lane MIPI CSI-2 connector

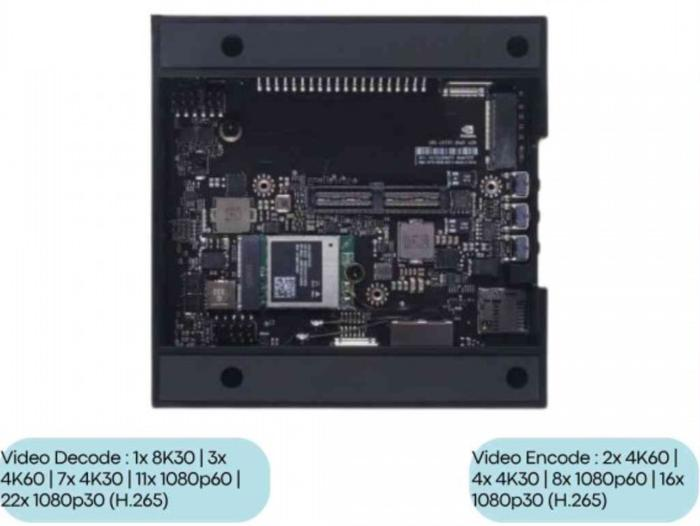

Video Encode : 2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265)
Video Decode : 1x 8K30 | 3x 4K60 | 7x 4K30 | 11x 1080p60 | 22x 1080p30 (H.265)
Networking : RJ45 connector with up to 10 GbE
Display : 1x DisplayPort 1.4a (+MST) connector
Other I/O : 40-pin header (UART, SPI, I2S, I2C, CAN, PWM, DMIC, GPIO), 12-pin automation header, 10-pin audio panel header, 10-pin JTAG header, 4-pin fan header, 2-pin RTC batter backup connector, microSD slot, DC power jack, Power, Force Recovery, and Reset buttons
PCIe : x16 PCIe slot supporting x8 PCIe Gen4, M.2 Key M slot with x4 PCIe Gen4, M.2 Key E slot with x1 PCIe Gen4
USB : 2x USB Type-C 3.2 Gen2, 2x USB Type-A 3.2 Gen2, 2x USB 3.2 Gen1, 1x USB Micro-B 2.0
Dokumen :
1. Spesifikasi NVIDIA Jetson AGX Orin (Link)
2. Getting Started with Jetson AGX Orin Developer Kit (Link)
3. NVIDIA Jetson Modul Powered Device Comparison (Link)
4. NVIDIA Jetson AXG Orin 3D file (Link)
5. Komparasi NVIDIA Jetson AGX Orin vs AGX Xavier (Link)
Jetson AGX Orin Developer Kit features
MODULE:
GPU
DL Accelerator Memory Power
PCIe
M.2 Key E
Networking microSD slot
Dimensions
NVIDIA Ampere architecture with 2048 NVIDIA CUDA cores and 64 Tensor cores
2x NVDLA v2.0
32GB 256-bit LPDDR5 204.8 GB/s
15W to 60W
Table 1 Jetson AGX Orin Developer Kit Module Specs
x16 PCIe slot supporting x8 PCIe Gen4
x1 PCIe Gen 4, USB 2.0, UART, I2S
RJ45 (up to 10 GbE)
UHS-1 cards up to SDR104 mode
110mm x 110mm x 71.65mm
(Height includes feet, carrier board, module, and thermal solution)
Table 2 Jetson AGX Orin Developer Kit Carrier Board Specs
CPU
12-core Arm Cortex-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
Vision Accelerator
PVA v2.0
Storage
64GB eMMC 5.1
REFERENCE CARRIER BOARD:
Camera
16 lane MIPI CSI-2 connector
M.2 Key M
x4 PCIe Gen 4
USB
Type C: 2x USB 3.2 Gen2 with USB-PD support Type A: 2x USB 3.2 Gen2, 2x USB 3.2 Gen1 Micro-B: USB 2.0
Display
DisplayPort 1.4a (+MST)
Others
40-pin header (I2C, GPIO, SPI, CAN, I2S, UART, DMIC)
12-pin automation header 10-pin audio panel header 10-pin JTAG header
4-pin fan header
2-pin RTC battery backup connector
DC power jack
Power, Force Recovery, and Reset buttons
