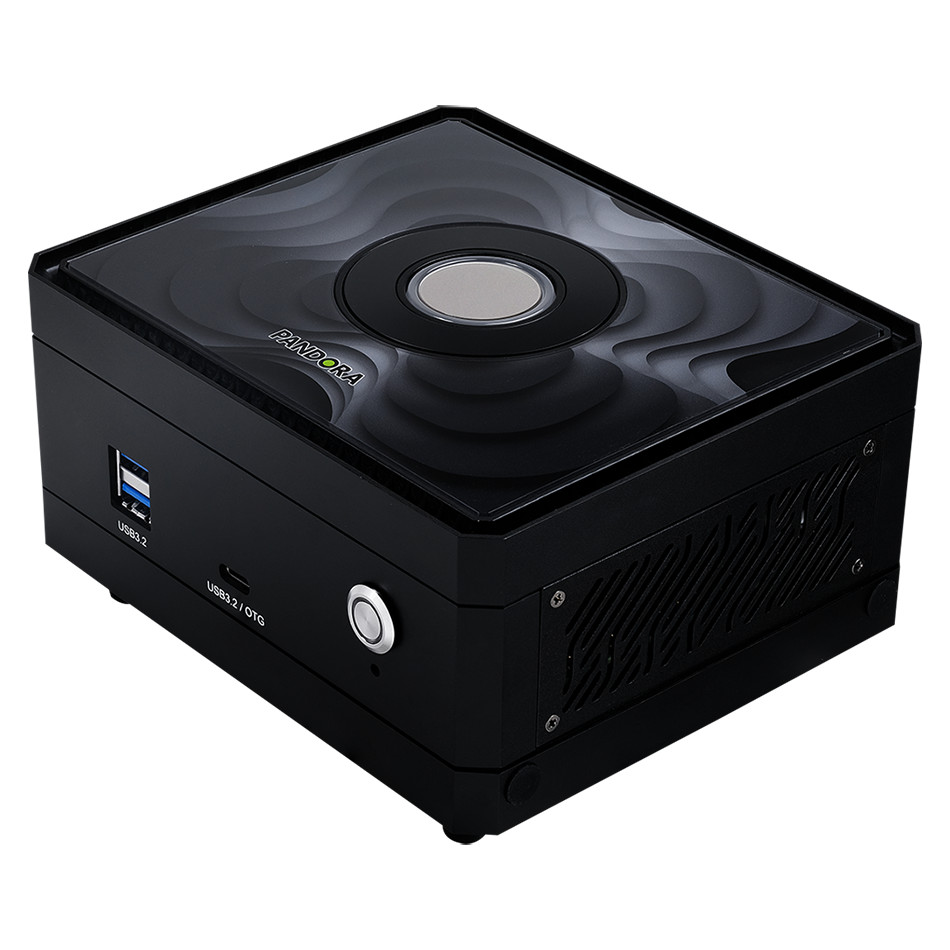

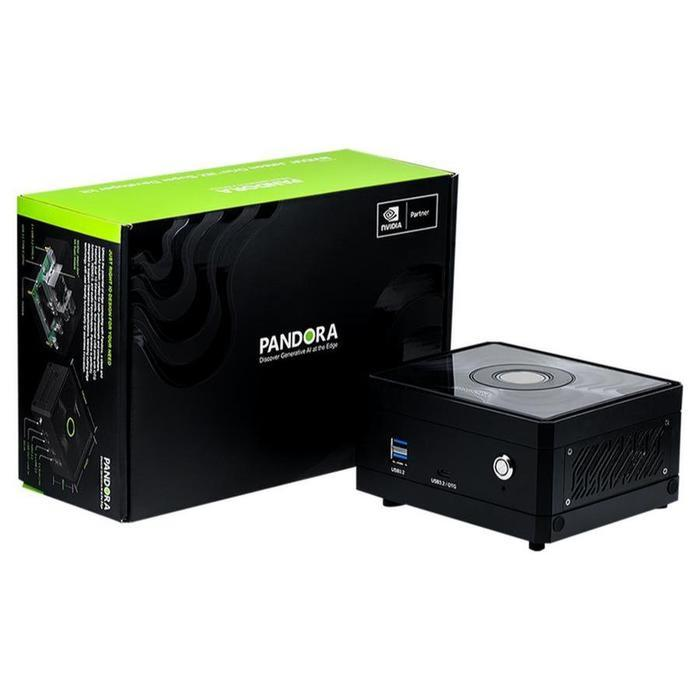

NVIDIA MINI PC PANDORA JETSON ORIN NX SUPER 16GB DK

Deskripsi Produk:

NVIDIA Jetson Ori NX Super Ready
Compact Size : 145mm × 123mm × 66mm
4×M.2, 8 Lanes MIPI CSI-2, and I2C / UART / GPIO / CAN Bus
2×USB3.2 Gen2, 2 × USB2.0, 1 x Nano SIM Card Slot
1×HDMI2.0
SpecificationsSYSTEMSOM ModuleNVIDIA Jetson Orin NX 8GB SuperNVIDIA Jetson Orin NX 16GB SuperCPU
6-Core Arm Cortex-A78AE v8.2 64-Bit CPU
1.5MB L2 + 4MB L3
8-Core Arm Cortex-A78AE v8.2 64-Bit CPU
2MB L2 + 4MB L3
GPU1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor CoresAI Performance117 / 58 TOPS (Sparse / Dense)157 / 78 TOPS (Sparse / Dense)System Memory
8GB 128-bit LPDDR5
total 102.4 GB/s bandwidth
16GB 128-bit LPDDR5
total 102.4 GB/s bandwidth
Part NumberA001FV1P1A002FV1P1INTERFACEStorageSupports External NVMeDisplay Interface1×HDMI2.0Ethernet2×RJ45 for 10/100/1000Mbps Ethernet DHCP ClientUSB

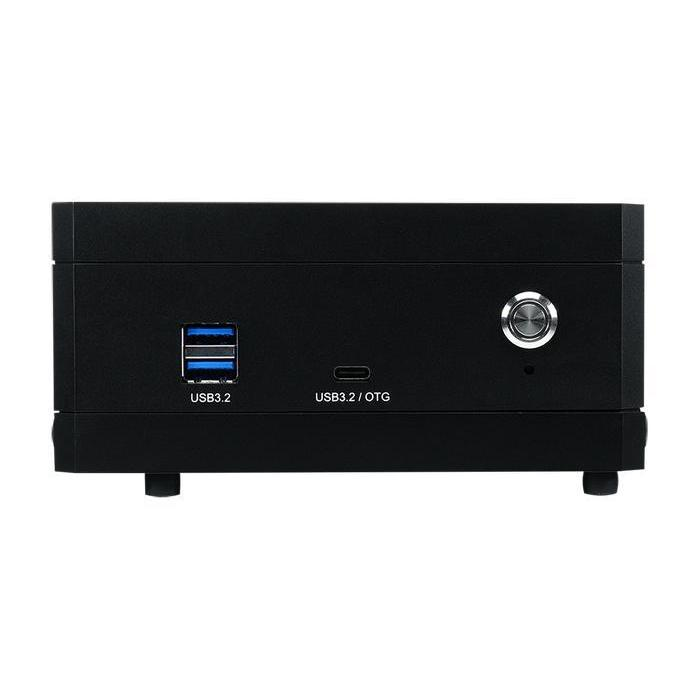

2×USB3.2 Gen2 ( Type-A )
1×USB3.2 Gen2 ( Type-C ) ( OTG )
2×USB2.0 ( Type-A )
Expansion Slot
1×M.2 2280 M Key PCIe Gen4×2 Slot ( with Pre-Installed 128GB SSD )
1×M.2 2280/3080 M Key PCIe Gen4×4 Slot, Support SSD or Video Capture Cards
1×M.2 2230 E Key PCIe Gen4×1+USB2.0 Slot, Support WiFi Module.
1×M.2 3042/3052 B Key USB3.2 Gen1 Slot, Support 5G/4G Wireless Module.
MIPI
8-Lane MIPI CSI-2
( D-PHY 2.1, Support MIPI Camera, Capture Card )

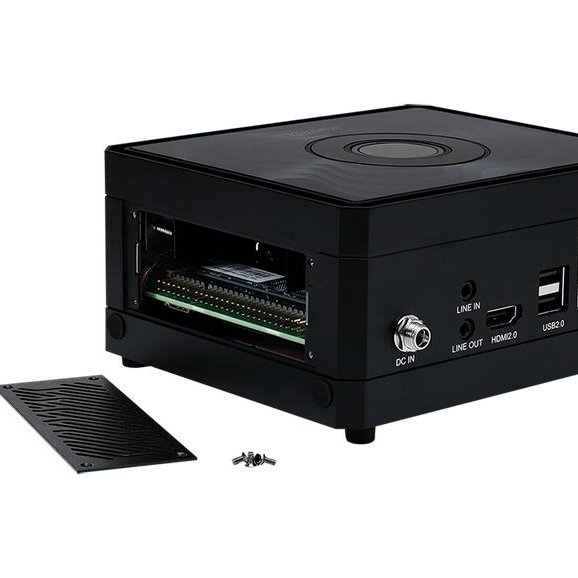

Audio
1×Line In ( 3.5mm Phone Jack )
1×Line Out ( 3.5mm Phone Jack )
Peripheral Communication
40 Pin Header
1×I2S
2×I2C
2×SPI
1×UART
3×GPIO
14 Pin Header
1×CAN Bus
1×UART with CTS/RTS
1×UART for Debug
1×Nano SIM Card Slot
Misc. Features
Firmware Upgradable
VIDEO FEATUREVideo Encode
AV1 ( UHP ) - 1×4K60 | 3×4K30 | 6×1080p60 | 12×1080p30
H.265 ( UHP )- 1×4K60 | 3×4K30 | 6×1080p60 | 12×1080p30
H.264 ( UHP ) - 1×4K60 | 2×4K30 | 5×1080p60 | 11×1080p30
Video Decode
AV1 ( Main Profile ) - 1×8K30 | 2×4K60 | 4×4K30 | 10×1080p60 | 20×1080p30
H.265 ( Main, Main10 ) - 1×8K30 | 2×4K60 | 4×4K30 | 9×1080p60 | 18×1080p30
H.264 ( Baseline, Main, High ) - 1×4K60 | 2×4K30 | 5×1080p60 | 11×1080p30
VP9 ( Profile 0, Profile 2 ) - 1×4K60 | 3×4K30 | 7×1080p60 | 15×1080p30
DEVELOPMENT ENVIRONMENTJetPack6.2 or HigherENVIRONMENTPower SupplyDC input : 12~36VOperating TemperatureStandard Version: 0~60C with AirflowStorage Temperature-20~80CMECHANICALDimension of Main Board115mm × 115mmDimension of System145mm × 123mm × 66mmWeight470g
