Detail Produk
Deskripsi Produk:
Fitur :

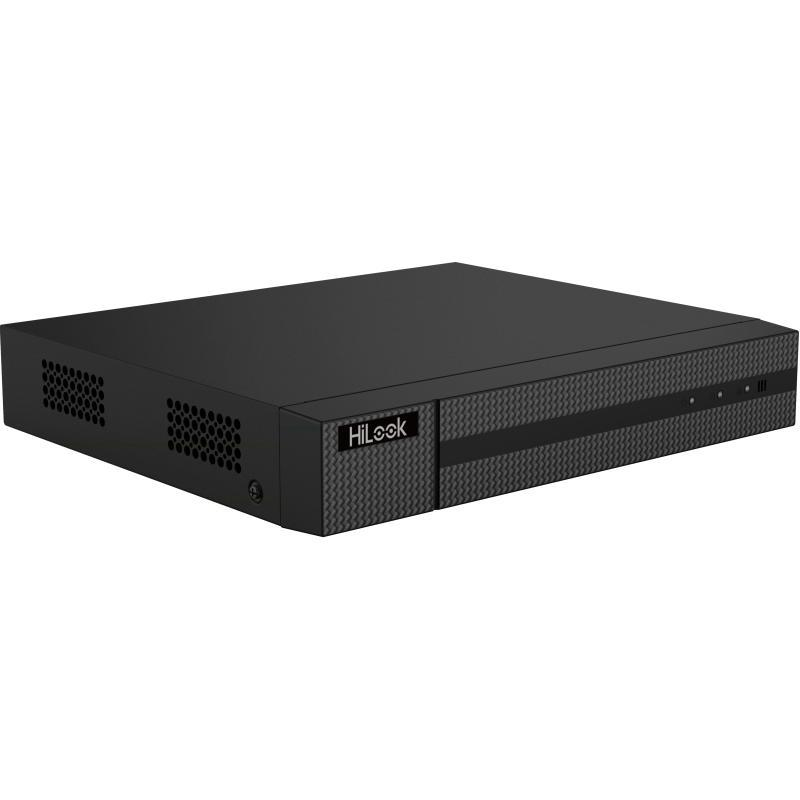

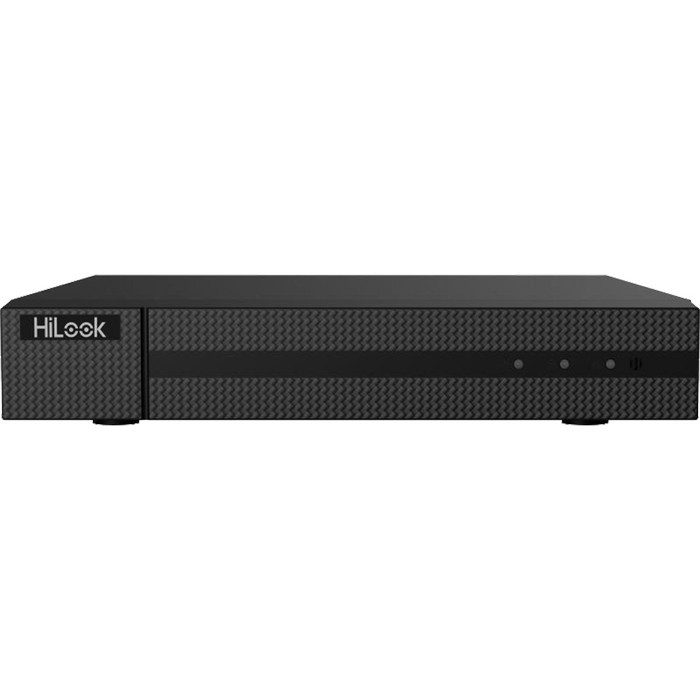

~ 8-ch 1080p Lite 1U H.265 DVR
~ Deep learning based human and vehicle targets classification of Motion Detection 2.0
~ H.265 Pro+/H.265 Pro/H.265 video compression
~ HDTVI/AHD/CVI/CVBS/IP video input
~ Audio via coaxial cable
~ Up to 10-ch IP camera input (up to 5 MP)
~ Encoding ability up to 1080p lite @ 15 fps
~ Max. 1200 m for 720p HDTVI signal
models : DVR-208G-M
Specification
* Motion Detection 2.0 : Human/Vehicle Analysis
Video and Audio
* IP Video Input : 2-ch (up to 10-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cam
* Analog Video Input : 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
* HDTVI Input : 1080p25, 1080p30, 720p25, 720p30
* AHD Input : 1080p25, 1080p30, 720p25, 720p30
* HDCVI Input : 1080p25, 1080p30, 720p25, 720p30
* CVBS Input : Support
* HDMI Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
* VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
* Video Output Mode : HDMI/VGA simultaneous output
Audio Input
~ 1-ch RCA (2.0 Vp-p, 1 KΩ)
~ 8-ch via coaxial cable
* Audio Output : 1-ch, RCA (Linear, 1 KΩ)
* Two-Way Audio : Reuse the first audio input
* Synchronous Playback : 8-ch
Recording
* Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
* Frame Rate : 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
* Video Bitrate : 32 Kbps to 4 Mbps
* Stream Type : Video, Video & Audio
* Audio Compression : G.711u
* Audio Bitrate : 64 Kbps
Network
* Total Bandwidth : 72 Mbps
* Remote Connection : 64
* Network Interface : 1, RJ45 10/100 Mbps self-adaptive Ethernet interface

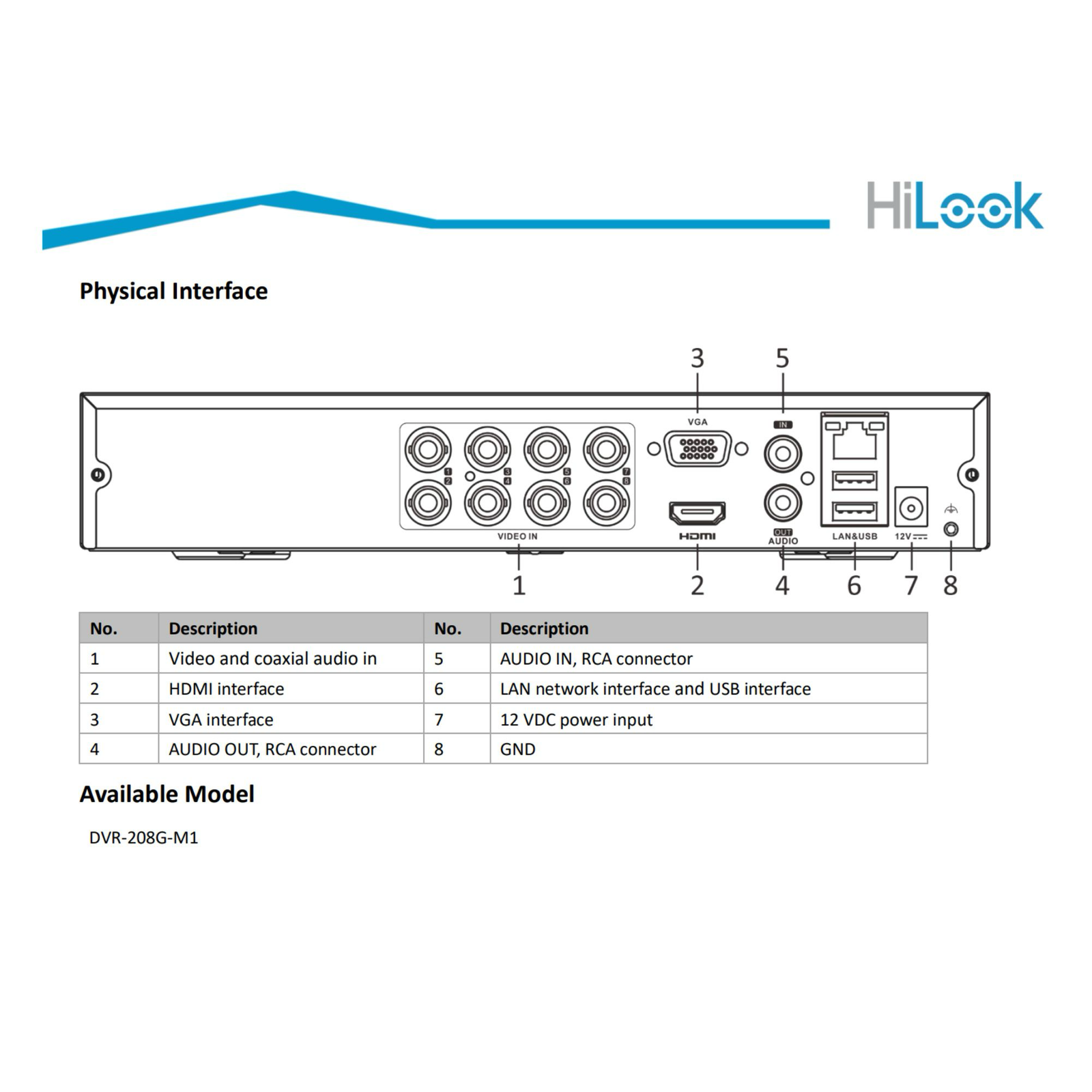

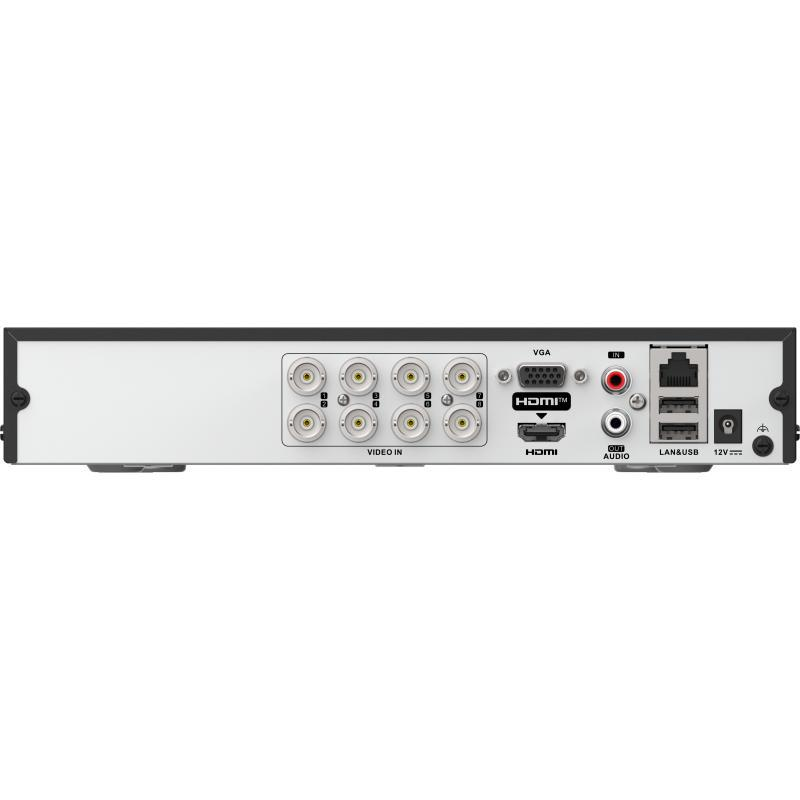

Interface
* SATA : 1 SATA interface
* Capacity : Up to 4 TB capacity for each disk
* USB Interface : Rear panel: 2 × USB 2.0
General
* Power Supply : 12 VDC, 1.5 A
* Consumption : ≤ 17 W (without HDD)
* Working Temperature : -10 °C to 55 °C (14 °F to +31 °F)
* Working Humidity : 10% to 90%
* Dimension (W × D × H) : 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
* Weight : ≤ 1 kg (without HDD, 2.2 lb.)
